What Sapphire Specifications Should I Provide for an RFQ?

When requesting a quotation for a custom sapphire component, the quality of the information you provide directly affects pricing accuracy, manufacturability, lead time, inspection planning, and final optical performance. A clear sapphire RFQ helps a manufacturer determine the correct crystal material, machining route, polishing process, coating design, metrology method, and production capacity before work begins.

At CHENGDU COCREATION OPTICAL, we manufacture high-purity synthetic sapphire and precision optical components through in-house cutting, grinding, shaping, ultra-precision polishing, inspection, and coating processes. Whether you need a sapphire rod, optical window, semiconductor substrate, watch crystal, ruby part, or another built-to-print component, a well-prepared RFQ is the fastest route from concept to reliable production.

This guide explains exactly what sapphire specifications to provide, why each specification matters, which details are frequently missed, and how to prepare an RFQ that supports samples, low-volume programs, and scalable production.

Why a Detailed Sapphire RFQ Matters

Sapphire is not a standard glass material. It is a single-crystal aluminum oxide material with very high hardness, strong chemical resistance, broad optical transmission, and valuable thermal characteristics. It is commonly selected for semiconductor equipment, laser systems, medical devices, optical instruments, sensing products, high-end consumer electronics, and harsh-environment windows.

However, sapphire is also difficult to machine and finish. Its hardness and crystal structure mean that a small change in tolerance, orientation, surface quality, or coating requirement can substantially change the manufacturing process.

For example, two sapphire windows may have the same outer dimensions but require very different production routes:

Requirement	Standard Protective Window	Precision Optical Window
Diameter	25.4 mm	25.4 mm
Thickness	2.0 mm	2.0 mm
Dimensional tolerance	±0.10 mm	±0.01 mm
Surface quality	60-40 scratch-dig	20-10 scratch-dig
Flatness	Not specified	λ/4 or better
Parallelism	Not specified	≤3 arc minutes
Coating	None	AR coating at a defined wavelength
Application	Protective cover	Laser or imaging system

The second part may require tighter grinding control, higher-grade polishing, more advanced inspection, coating qualification, and stricter packaging. It should therefore be quoted and reviewed differently.

A complete RFQ helps avoid several common problems:

Inaccurate quotation caused by missing tolerance or quality requirements
Longer lead times caused by clarification emails and drawing revisions
Over-specification that increases cost without improving functional performance
Under-specification that creates quality disputes after delivery
Coating mismatch because wavelength, angle of incidence, or environmental conditions were not stated
Inspection mismatch because acceptance criteria were not defined before production

The best RFQ does not need to include every technical parameter. It needs to clearly identify the parameters that affect function, production, and acceptance.

Start With the Sapphire Part Type

The first step is to state what you are purchasing. A manufacturer needs to understand the basic part category before determining the correct fabrication and inspection process.

Common sapphire component types include:

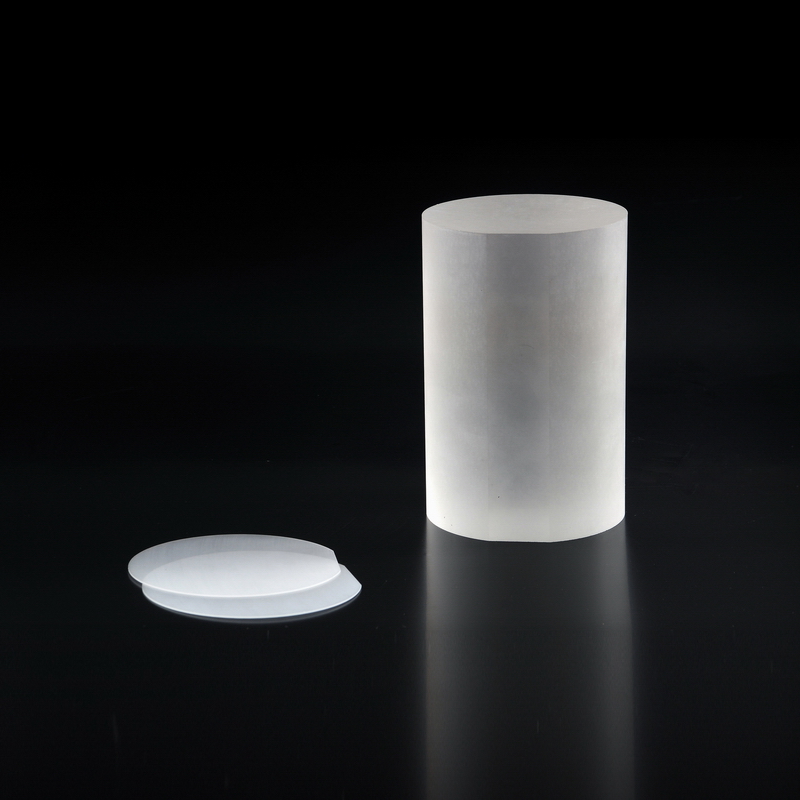

Sapphire windows
Sapphire wafers and substrates
Sapphire rods and tubes
Sapphire lenses
Sapphire watch crystals
Sapphire optical flats
Sapphire semiconductor components
Sapphire nozzles, bearings, and wear parts
Ruby components
Custom irregular-shaped sapphire parts
Sapphire parts with holes, slots, steps, bevels, or chamfers

If your part is not a standard shape, attach a technical drawing. A 2D PDF drawing is usually sufficient for quotation. For complex three-dimensional parts, a STEP, IGES, or DWG file can reduce ambiguity and help evaluate machining feasibility.

Your RFQ should begin with a clear description, such as:

Custom double-side polished sapphire window, 50.0 mm × 30.0 mm × 1.0 mm, AR coated for 1064 nm laser transmission.

Or:

C-plane sapphire substrate, 2-inch diameter, double-side polished, for GaN-based semiconductor research.

This description gives the manufacturing team an immediate understanding of the part’s material, geometry, finishing level, and intended use.

Specify the Sapphire Material Grade

Not all sapphire material is identical in purity, crystal orientation, optical quality, or intended application. The material requirement should match the real performance needs of the component.

For most RFQs, specify whether you require:

Optical-grade sapphire
Semiconductor-grade sapphire
High-purity synthetic sapphire
General industrial sapphire
Ruby material
Colorless sapphire
Custom doped or specialty crystal material, if applicable

Synthetic sapphire is widely used because it offers controlled quality and repeatable availability. It is commonly selected for demanding optical, mechanical, thermal, and electronic applications.

Sapphire has broad transmission from ultraviolet through infrared wavelengths, although actual transmission depends on material quality, thickness, surface finish, coating, and the operating wavelength. Published material data commonly places sapphire’s useful transmission range roughly from the deep ultraviolet region to the mid-infrared region.

For optical applications, clarify whether the component will be used in:

Ultraviolet systems
Visible-light imaging
Near-infrared sensing
Laser systems
Mid-infrared measurement
High-power illumination
Spectroscopy
High-temperature viewing
Vacuum or corrosive environments

This application information helps determine whether standard optical sapphire is sufficient or whether a higher-purity grade, tighter inclusions control, specific orientation, or special coating design is required.

Define Crystal Orientation and Axis Direction

Crystal orientation is one of the most important sapphire specifications for semiconductor, optical, and high-precision applications.

Sapphire is anisotropic. This means some physical and optical properties can vary according to crystal direction. The orientation may influence wafer compatibility, birefringence behavior, machining response, thermal performance, and optical system design.

Common sapphire orientations include:

C-plane
A-plane
M-plane
R-plane
Custom orientation
Specified off-angle orientation

For semiconductor substrates, orientation is often essential. A wafer designed for epitaxial growth, LED fabrication, GaN processing, silicon-on-sapphire applications, or RF electronics may require a specific plane and off-axis angle.

A good semiconductor sapphire RFQ should include:

Crystal orientation
Orientation tolerance
Off-angle requirement
Primary flat or notch requirement
Flat orientation
Diameter or wafer size
Thickness
Polished side requirement
TTV, bow, warp, and surface roughness requirements

For example:

4-inch C-plane sapphire substrate, 650 ± 25 μm thick, primary flat specified, double-side polished, TTV ≤ 10 μm, bow ≤ 10 μm, warp ≤ 20 μm.

If you do not know the correct orientation, state the intended application rather than guessing. For example, mention that the part will be used for GaN epitaxy, an optical isolator, a laser cavity, an RF device, or a high-temperature viewing window. The manufacturer can then help evaluate a suitable material direction.

Provide Complete Dimensions and Tolerances

Dimensions are the foundation of every sapphire RFQ. Always provide the finished part dimensions rather than only the dimensions of the assembly space.

Include the following where applicable:

Length
Width
Diameter
Thickness
Inner diameter
Outer diameter
Height
Radius
Hole diameter
Hole location
Slot width

For a circular sapphire window, a basic dimensional callout may look like this:

Diameter: 25.00 ± 0.05 mm
Thickness: 1.00 ± 0.03 mm
Edge: 0.2 mm × 45° chamfer

For a rectangular sapphire plate:

Length: 50.00 ± 0.05 mm
Width: 30.00 ± 0.05 mm
Thickness: 2.00 ± 0.03 mm
Corners: R0.5 mm maximum
Edges: Fine ground and chamfered

Avoid writing only “approximately 25 mm” if the component must fit into a mechanical holder. Instead, identify the tolerance that the assembly can accept.

Match Tolerances to Function

Tighter tolerances are not always better. They can increase production time, material loss, inspection requirements, and cost.

Before specifying a tight tolerance, ask:

Does the part need to fit into a metal housing?
Does it need to align with another optical component?
Is thickness important for focal distance or optical path?
Is the part exposed to pressure or vacuum?
Will it be bonded, mounted, or soldered?
Is the tolerance needed across all dimensions or only at critical locations?

A useful practice is to mark critical dimensions on the drawing. This allows the manufacturer to focus precision control on features that directly affect assembly or performance.

State Surface Finish and Surface Quality Requirements

Surface finish is often misunderstood in sapphire procurement. A part can look transparent to the eye but still be unsuitable for laser transmission, imaging, metrology, semiconductor use, or precision sealing.

For optical surfaces, you should define both surface quality and surface roughness when necessary.

Scratch-Dig Surface Quality

Scratch-dig is a visual specification used to control allowable surface imperfections. Common specifications include:

80-50
60-40
40-20
20-10
10-5

In a scratch-dig designation, the first number refers to scratch severity, while the second number refers to the maximum allowable dig size under the relevant inspection method. A 40-20 specification is commonly used as a general optical-quality requirement, while precision laser and high-performance imaging applications often require tighter specifications.

Typical selection guidance:

Surface Quality	Typical Use
80-50	General industrial covers and non-critical protection
60-40	Standard protective sapphire windows
40-20	General optical components and imaging windows
20-10	Precision optical and laser-related components
10-5	High-end laser, metrology, or demanding optical systems

If surface quality matters only in a clear aperture, clearly define the area. For example:

Surface quality: 40-20 scratch-dig within 90% central clear aperture. Edge zone cosmetic defects allowed outside the clear aperture.

This approach can reduce cost while preserving optical performance where it matters.

Surface Roughness

Surface roughness is typically stated as Ra or RMS. It is especially important for semiconductor substrates, thin-film deposition, high-power optical systems, and components requiring controlled scattering.

Examples include:

Ra ≤ 1 nm
Ra ≤ 0.5 nm
Ra ≤ 0.2 nm
RMS ≤ 1 nm

For wafers and substrates, polished surface roughness may be specified together with total thickness variation, bow, warp, and local flatness.

Do not confuse a polished appearance with a quantified roughness requirement. If your process depends on thin-film adhesion, epitaxial growth, low scatter, or precision bonding, include a measurable roughness target.

Specify Flatness, Parallelism, and Wedge

For precision sapphire windows, optical flats, substrates, and laser components, dimensional tolerances alone are not enough. You may also need to specify how flat the surfaces are and how parallel the two surfaces must remain.

Surface Flatness

Flatness describes the departure of a single surface from an ideal plane. It is usually expressed in waves, fringes, microns, or nanometers.

Examples:

Flatness: λ/2 per surface
Flatness: λ/4 per surface
Flatness: λ/10 per surface
Flatness: ≤2 μm

The wavelength used for measurement should be stated when using wave-based specifications. A common format is:

Surface flatness: λ/4 per surface at 632.8 nm.

Transmitted Wavefront Error

For optical windows, transmitted wavefront error evaluates the effect of both surfaces on a transmitted beam. It is especially important in imaging, laser, interferometric, and beam-steering systems.

A sapphire window can have acceptable individual surface flatness but still introduce optical distortion if the two surfaces are not properly controlled together. Therefore, if your system is sensitive to transmitted beam quality, specify transmitted wavefront error rather than relying only on surface flatness.

Parallelism and Wedge

Parallelism describes the angular relationship between two surfaces. Wedge describes the thickness variation caused by non-parallel faces.

Examples:

Parallelism: ≤3 arc minutes
Parallelism: ≤30 arc seconds
Wedge: ≤3 arc minutes
Wedge: ≤0.05 mm

For a simple protective cover, parallelism may not be important. For a laser window or imaging component, it can affect beam deviation, ghost reflections, and optical alignment.

A supplier checklist for precision sapphire substrates commonly distinguishes between per-surface flatness and transmitted wavefront error, and notes that parallelism is measured as the relationship between two faces.

Define Optical Requirements and Coating Needs

If the sapphire component will transmit or reflect light, include the optical conditions of use. This is particularly important for coated windows, laser components, sensor covers, camera windows, and spectroscopy parts.

At minimum, provide:

Operating wavelength or wavelength range
Angle of incidence
Polarization condition, if relevant
Required transmission or reflectance
Coating type
Coated surface
Clear aperture
Laser power or energy density, if applicable
Operating temperature
Environmental conditions

Common coating options include:

Anti-reflective coating
Broadband anti-reflective coating
Laser-line AR coating
High-reflective coating
Partial reflective coating
Infrared coating
UV coating
Protective coating
Conductive coating

A vague request such as “please add AR coating” does not provide enough information for an accurate design. Instead, write:

Apply broadband AR coating on both sides for 400–700 nm, angle of incidence 0–15°, average transmission requirement greater than 98% per coated surface.

Or:

Apply laser-line AR coating on both sides at 1064 nm, 0° angle of incidence, designed for pulsed laser use. Provide coating durability information and recommended cleaning method.

The correct coating depends on the wavelength, angular range, polarization, environment, cleaning process, and power density. A coating designed for normal incidence may not perform the same way at 45° incidence. Similarly, a coating intended for visible light is not automatically suitable for infrared sensing.

Include the Real Operating Environment

The application environment often determines whether a sapphire component requires special material selection, edge treatment, mounting guidance, or coating protection.

Include any relevant conditions:

High temperature
Rapid temperature cycling
Thermal shock risk
High pressure
Vacuum
Humidity
Salt spray
Chemical exposure
Plasma exposure
Radiation
Abrasive cleaning

Sapphire is valued for its hardness, chemical resistance, optical transparency, and thermal conductivity. Published reference data reports room-temperature thermal conductivity in the approximate range of 23–27 W/m·K, depending on crystal direction and test conditions. However, sapphire is not immune to system-level failure. Mounting stress, thermal expansion mismatch, sharp internal corners, poor edge finishing, and abrupt thermal gradients can all create reliability risks.

For example, a sapphire window installed in a metal frame should not be specified only by diameter and thickness. The RFQ should also identify:

Mounting method
O-ring sealing or adhesive bonding method
Pressure differential
Temperature range
Exposure to thermal cycling
Whether edge strength is critical
Whether chips or edge defects are unacceptable

This information helps determine appropriate chamfers, edge polishing, stress-relief geometry, and inspection requirements.

Add Quantity, Delivery, and Project Stage

Quantity is not only a purchasing detail. It influences material allocation, tooling, process planning, yield expectations, inspection methods, unit pricing, and production lead time.

Always state:

Sample quantity
Prototype quantity
Pilot-production quantity
Annual forecast quantity
Maximum production requirement
Required delivery date
Target launch date
Whether partial shipments are acceptable

For example:

Initial prototype quantity: 20 pieces.
Expected pilot run: 500 pieces within three months after qualification.
Estimated annual demand: 10,000 pieces.
Please quote prototype, pilot, and annual-volume pricing separately.

This structure allows the supplier to recommend the most practical route for each stage. The best method for ten prototype parts may not be the best method for 10,000 pieces per year.

At CHENGDU COCREATION OPTICAL, we support projects from sample development and small-batch verification through scalable production. Sharing your expected project stage helps us recommend a manufacturing path that balances performance, cost, and delivery reliability.

Use a Drawing and Inspection Plan

A technical drawing is the most efficient way to communicate a sapphire part. It should include dimensions, tolerances, finish notes, material requirements, critical features, and any relevant inspection criteria.

An effective drawing should show:

Part number and revision level
Units of measurement
Overall dimensions
Tolerances
Surface finish notes
Flatness and parallelism requirements
Clear aperture
Edge and chamfer requirements
Hole, slot, or groove geometry
Crystal orientation
Coating notes

If your drawing is preliminary, identify it as a concept drawing. This tells the manufacturer that design-for-manufacturing feedback may be useful before final release.

Define How the Part Will Be Accepted

A frequent source of disagreement is not the part itself, but the inspection method. For demanding applications, specify how key requirements should be measured.

Examples include:

Surface quality inspected under a defined illumination condition
Flatness measured by interferometer
Thickness measured at specified points
Diameter measured with calibrated equipment
Coating transmission measured at stated wavelengths
Crystal orientation verified by X-ray diffraction
Surface roughness measured by profilometry or atomic force microscopy
Particle and cleanliness standards defined for semiconductor use

For scratch-dig requirements, ensure both parties understand the applicable inspection standard and the inspection area. Surface-quality specifications can be interpreted differently when lighting, magnification, inspection distance, or clear aperture are not defined.

Practical Sapphire RFQ Checklist

Before sending your RFQ, review the following checklist.

Basic Information

Part name and part number
Application and end-use environment
Drawing, photo, sketch, or 3D model
Quantity and annual forecast
Target delivery date
Prototype, pilot, or mass-production stage

Material Information

Sapphire grade
Optical-grade or semiconductor-grade requirement
Crystal orientation
Off-angle requirement
Ruby or special material requirement
Color or transparency requirement

Geometry Information

Length, width, diameter, thickness, and height
Tolerance for every critical dimension
Hole, slot, step, groove, and radius details
Chamfer, bevel, and edge condition
Clear aperture
Critical dimensions marked on drawing

Optical and Surface Information

Surface quality requirement
Surface roughness requirement
Polished side or double-side polished requirement
Flatness requirement
Parallelism or wedge requirement
Transmitted wavefront error requirement
Transmission, reflectance, or scattering target
Wavelength range and angle of incidence

Coating and Environment Information

Coating type
Coating wavelength range
Coated surface
Laser power or energy density
Temperature range
Vacuum, chemical, humidity, or pressure exposure
Cleaning and sterilization requirements
Packaging and cleanliness requirements

Common RFQ Mistakes to Avoid

The most common sapphire RFQ mistake is providing only an overall size and quantity. This may be enough for an initial budgetary estimate, but it is rarely enough for a production-ready quotation.

Avoid these incomplete requests:

Need sapphire glass, 50 mm × 50 mm × 2 mm. Please quote.

This leaves many critical questions unanswered. Is the part an industrial cover or a precision optical window? Does it need one polished surface or two? Is a coating required? What surface quality is acceptable? Are the edges ground, polished, chamfered, or left sharp? Does the part operate in visible light, ultraviolet light, infrared light, vacuum, or high pressure?

A stronger request would be:

Please quote 100 pieces of custom optical-grade sapphire windows. Finished size: 50.00 ± 0.05 mm × 50.00 ± 0.05 mm × 2.00 ± 0.03 mm. Both faces polished to 40-20 scratch-dig within a 45 mm × 45 mm clear aperture. Surface flatness λ/4 per side at 632.8 nm. Parallelism ≤3 arc minutes. Edges chamfered 0.2 mm × 45°. AR coating on both sides for 1064 nm at normal incidence. Application: laser protective window. Please provide prototype and 1,000-piece pricing, lead time, coating performance data, and inspection report options.

This version reduces uncertainty and allows a manufacturer to provide a much more reliable quotation.

Work With a Manufacturer Early

The best time to ask for manufacturability feedback is before the drawing is frozen. Sapphire is an exceptionally capable material, but successful components depend on balancing performance requirements with realistic production methods.

Early technical review can help you:

Remove unnecessary tolerances
Improve edge strength
Reduce machining complexity
Select a more practical thickness
Match coating design to the actual optical system
Improve yield and production consistency
Identify appropriate inspection methods
Plan a smooth path from prototype to volume production

For example, a sharp internal corner may be difficult or costly to produce in sapphire. Adding an appropriate internal radius may improve manufacturability and reduce the risk of cracking. Similarly, a very thin part with tight flatness may require special handling and polishing methods that should be planned before production begins.

Request Your Custom Sapphire Quote

A strong sapphire RFQ should communicate more than size. It should define the material, crystal orientation, geometry, tolerances, surface quality, optical performance, coating requirements, operating environment, quantity, and acceptance criteria needed for your application.

CHENGDU COCREATION OPTICAL provides high-purity synthetic sapphire and precision optical component manufacturing with integrated cutting, grinding, ultra-precision polishing, shaping, inspection, and coating capabilities. We support sapphire rods, sapphire windows, semiconductor components, high-end watch crystals, ruby parts, and custom precision components from samples and small batches to volume production.

Send us your drawing, material requirements, quantity, application conditions, and target specifications. Our engineering team can review your design, identify key manufacturing considerations, and prepare a quotation aligned with your functional and production requirements.

FAQ

What is the minimum information needed for a sapphire RFQ?

At minimum, provide the part shape, finished dimensions, tolerances, material grade, quantity, surface finish requirement, application, and delivery requirement. For optical or semiconductor parts, also provide crystal orientation, flatness, surface quality, wavelength, coating, and inspection requirements.

Should I specify sapphire crystal orientation?

Yes, if the component is a semiconductor substrate, epitaxial-growth wafer, polarized optical element, precision optical part, or application where anisotropic material behavior may matter. For simple protective windows, orientation may not be critical, but it should still be discussed if thermal or optical performance is demanding.

What does 40-20 scratch-dig mean for sapphire optics?

It is a commonly used visual surface-quality specification. The first number controls allowable scratch severity, while the second relates to the maximum allowable dig size under the relevant inspection convention. A 40-20 finish is often suitable for general optical applications, while laser and precision imaging systems may need tighter requirements such as 20-10 or 10-5.

Do I need flatness and parallelism for a sapphire window?

Not always. A protective cover may only need dimensional control and an acceptable surface finish. However, flatness, transmitted wavefront error, and parallelism become important when the window is used in imaging, laser transmission, beam steering, interferometry, or another optical path where distortion matters.

What information is needed for an AR-coated sapphire window?

Provide the operating wavelength or wavelength range, angle of incidence, polarization if relevant, required transmission or reflectance, coated side or sides, clear aperture, laser power or energy density, environmental conditions, and durability or cleaning requirements.

Can sapphire parts be produced for prototypes and larger production volumes?

Yes. Production planning should be based on the project stage. Prototype quantities may use flexible machining and inspection routes, while recurring volume programs may benefit from optimized material utilization, dedicated process control, and standardized inspection planning.

Can a sapphire manufacturer help improve my drawing before production?

Yes. Early drawing review can identify unnecessary tolerances, difficult internal features, edge-strength risks, coating mismatches, and inspection issues. This often improves both manufacturability and total project cost.

References

1. SCHOTT – “Sapphire for Advanced Imaging, Sensing & Security” – Overview of sapphire applications in advanced imaging, sensing, and security. https://media.schott.com/api/public/content/2c2ecfc25979458f8526491917961fc8?v=27eb4791&download=true

2. Edmund Optics – “Understanding Surface Quality Specifications” – Application note explaining surface quality specifications for optical components. https://www.edmundoptics.com/knowledge-center/application-notes/lasers/understanding-surface-quality-specifications/

3. Shinkosha – “Thermal Properties of Sapphire” – Technical reference on the thermal properties of sapphire. https://www.shinkosha.com/english/techinfo/feature/thermal-properties-of-sapphire/

4. Sydor Optics – “Sapphire Data Sheet” – Technical data sheet on sapphire properties and specifications. https://www.sydor.com/wp-content/uploads/Ohara_Sapphire.pdf

5. Valley Design – “Properties of Sapphire Substrates and Sapphire Wafers” – Technical reference on sapphire substrate and wafer properties. https://valleydesign.com/sappprop/

6. Guild Optical Associates – “Sapphire Substrates Built to Print” – Custom sapphire substrate fabrication to print specifications. https://www.guildoptics.com/sapphire-substrates-built-to-print/

7. Esco Optics – “Sapphire Optical Properties” – Overview of the optical properties of sapphire. https://escooptics.com/blogs/news/sapphire-optical-properties

Hot Tags: Sapphire Windows, Custom Sapphire Components, Sapphire Optical Windows, Sapphire Substrates, Sapphire Wafers, Optical Grade Sapphire, Precision Sapphire Components, Sapphire Window Manufacturer, Custom Optical Components, Sapphire Coating

Leave a ReplyCancel Reply

Related Posts

For Immediate Assistance, Please Contact us Now!
