How to Choose a Sapphire Crystal Manufacturer?

Choosing the right sapphire crystal manufacturer is not simply a matter of comparing prices or checking whether a supplier can machine sapphire. For precision optical, semiconductor, laser, medical, and smart-device applications, the manufacturer you select can directly influence optical performance, yield, reliability, delivery stability, and long-term product cost.

Sapphire is a single-crystal aluminum oxide material valued for its exceptional hardness, broad optical transmission range, thermal conductivity, chemical resistance, and electrical insulation. However, these same properties make sapphire difficult to process. A supplier may be able to produce a basic sapphire window or rod, yet lack the crystal knowledge, ultra-precision polishing capability, inspection discipline, or coating control needed for demanding applications.

At CHENGDU COCREATION OPTICAL, we manufacture high-purity synthetic sapphire and precision optical components through integrated cutting, grinding, ultra-precision polishing, shaping, inspection, and coating processes. From sample development and low-volume prototyping to repeatable production programs, we help customers turn performance requirements into dependable sapphire parts.

This guide explains how to evaluate a sapphire manufacturer from an engineering, quality, and supply-chain perspective.

Why Manufacturer Selection Matters for Sapphire Components

Sapphire is not ordinary glass. It is a hard, anisotropic, single-crystal material with properties that vary according to crystal orientation, component geometry, surface condition, and application environment.

For example, a sapphire optical window used in a laser system may require high transmission at a specific wavelength, low wavefront distortion, controlled surface quality, and a laser-resistant coating. A sapphire watch crystal may prioritize scratch resistance, edge strength, appearance, dimensional consistency, and decorative coating performance. A semiconductor-related sapphire component may require tight flatness, parallelism, thickness control, cleanliness, and defect inspection.

A part that looks correct under normal room light may still fail in service because of:

Poor crystal orientation selection
Subsurface damage created during grinding
Insufficient surface roughness control
Hidden chips or edge microcracks
Inconsistent thickness or parallelism
Coating adhesion problems
Optical transmission loss at the working wavelength
Particle contamination
Lot-to-lot variation during scale-up

The right manufacturer should understand the relationship between sapphire material properties, machining processes, inspection criteria, and final operating conditions.

Understand What You Actually Need First

Before comparing suppliers, define the real function of the sapphire component. A clear specification prevents unnecessary cost, avoids design errors, and makes supplier quotations more meaningful.

A useful request for quotation should include more than a drawing. It should explain how the part will work in the final assembly.

Define the Application Environment

Ask these questions before selecting a sapphire crystal manufacturer:

What is the component’s primary function?
Will it transmit light, protect a sensor, support a semiconductor process, or serve as a wear-resistant mechanical part?
What wavelength range must pass through the material?
Will the part face high temperature, pressure, vibration, chemicals, moisture, or abrasion?
Is the component exposed to laser energy?
Is it used in a vacuum, cleanroom, medical, or high-purity environment?
Does the part require a coating?
What is the expected annual volume?
Is the project at the prototype, pilot, or mass-production stage?
Which dimensions and optical characteristics are truly critical?

The more accurately the manufacturer understands the use case, the more effectively it can recommend material orientation, machining process, coating design, inspection method, and packaging approach.

Separate Critical Requirements From Preferences

Not every tolerance needs to be extremely tight. Over-specification can increase lead time and cost without improving the final product.

For example, a protective sapphire window may need excellent surface quality on the optical face, while the non-optical edge may allow a more practical finish. A watch crystal may require a polished chamfer and excellent cosmetic appearance, while a semiconductor fixture may prioritize flatness and dimensional stability rather than appearance.

A capable supplier should help distinguish between:

Requirement Area	Typical Questions to Clarify	Why It Matters
Material	Synthetic sapphire grade, purity, orientation, color	Influences optical, mechanical, and thermal behavior
Dimensions	Diameter, thickness, length, profile, hole geometry	Determines machining difficulty and yield
Surface Quality	Scratch-dig level, roughness, cosmetic standard	Affects appearance, transmission, and scattering
Optical Performance	Transmission range, wavefront, wedge, parallelism	Essential for imaging, sensing, and laser systems
Mechanical Strength	Edge finish, chamfer, corner radius, impact exposure	Reduces cracking and handling failures
Coating	Anti-reflection, protective, conductive, decorative	Must match wavelength and operating environment
Inspection	Sampling plan, measurement method, acceptance limit	Ensures repeatable quality across production lots
Packaging	Cleanliness, separation, protective packaging	Prevents damage and contamination before assembly

Evaluate the Manufacturer’s In-House Capabilities

A strong sapphire supplier should control the key processes that determine quality. Outsourcing is not automatically a problem, but excessive dependence on multiple subcontractors can create longer communication cycles, inconsistent quality, and unclear responsibility when issues occur.

For critical sapphire optics, it is valuable to work with a manufacturer that can manage the production flow from raw material to final inspection.

Crystal Processing and Material Preparation

The first question is whether the manufacturer understands sapphire as a crystal material rather than treating it as generic hard glass.

Sapphire is known for high hardness, high mechanical strength, chemical resistance, and broad transmission from ultraviolet through visible and infrared regions. Depending on the grade, thickness, orientation, and surface condition, sapphire is widely used for optical windows, sensor protection, semiconductor-related components, laser systems, medical devices, and wearable-device covers. Sapphire typically has a Mohs hardness of 9 and transmits across a broad range commonly described from approximately 0.2 to 5.5 μm.

A knowledgeable manufacturer should be able to discuss:

Crystal orientation, such as C-plane, A-plane, R-plane, or custom orientation
Birefringence considerations for optical applications
Raw material quality and traceability
Color and appearance requirements
Internal defect considerations
Annealing or stress-relief needs
Material utilization for costly geometries

Crystal orientation is especially important. Sapphire is anisotropic, meaning its optical and mechanical behavior depends on the direction of the crystal structure. Choosing the wrong orientation can create avoidable optical effects, processing difficulties, or reliability concerns.

Cutting, Coring, and Shaping Capability

Sapphire’s hardness creates a major machining challenge. The supplier should demonstrate experience with cutting sapphire rods, discs, wafers, plates, windows, rings, and custom-shaped parts without creating unacceptable chipping or subsurface damage.

Ask whether the manufacturer can produce:

Sapphire rods and tubes
Circular and rectangular sapphire windows
Sapphire wafers and semiconductor components
Stepped parts and precision rings
Sapphire watch crystals
Ruby bearings and wear-resistant parts
Complex profiles, apertures, slots, and holes
Custom optical or mechanical components

The equipment itself matters, but process control matters more. A manufacturer should understand how machining parameters affect edge quality, dimensional accuracy, breakage risk, and polishing time.

Grinding and Ultra-Precision Polishing

For optical sapphire components, polishing quality is one of the most important differentiators.

Grinding establishes the initial geometry, but it can leave subsurface damage below the visible surface. If the polishing process does not remove this damaged layer effectively, the part may show reduced strength, unwanted scattering, lower transmission, or premature failure under stress.

A reliable manufacturer should be able to explain how it controls:

Flatness
Parallelism
Thickness tolerance
Surface roughness
Wedge
Wavefront quality
Scratch-dig quality
Edge chipping
Surface cleanliness

Precision optical components are often evaluated according to recognized optical drawing conventions and surface-quality standards. For example, ISO 10110 provides a standardized way to communicate many optical-element requirements, while scratch-dig criteria are commonly referenced through standards such as MIL-PRF-13830B or related drawing conventions.

The exact requirement should always fit the application. A high-power laser window, imaging component, and consumer watch cover do not need the same surface specification.

Inspection and Metrology Systems

A manufacturer’s inspection capability is often more revealing than its marketing materials. It shows whether the supplier can verify the specifications it promises.

Ask what instruments and methods are used for:

Dimensional measurement
Thickness measurement
Flatness and parallelism measurement
Surface roughness measurement
Optical transmission measurement
Surface-defect inspection
Microscopic edge inspection
Coating performance testing
Particle and cleanliness inspection
Incoming and final quality control

For advanced applications, inspection should not rely solely on visual checks. Automated and optical inspection can help reveal defects that are difficult to identify through manual observation alone. In semiconductor-related sapphire production, automated defect detection has been highlighted as a way to improve yield by identifying material or surface issues that affect downstream manufacturing.

Compare Sapphire Manufacturing Quality Beyond Price

A low quotation may appear attractive during sourcing, but the true cost of a sapphire component includes more than the unit price.

A part with poor edge quality may crack during assembly. A coating with inconsistent transmission may reduce system performance. A supplier that cannot maintain dimensional consistency can increase sorting, rework, yield loss, and production interruptions.

When comparing manufacturers, evaluate the total cost of ownership.

Evaluation Factor	Low-Cost Approach	Reliable Manufacturing Approach
Material selection	Generic material choice	Application-based crystal and orientation selection
Drawing review	Quote only	Engineering feedback before production
Machining	Focus on basic dimensions	Control of geometry, edges, and damage removal
Polishing	Cosmetic appearance only	Defined roughness, flatness, and optical requirements
Inspection	Limited sampling or visual checks	Documented measurements and traceable inspection
Coating	Standard option without application review	Coating designed for wavelength and environment
Packaging	Basic bulk packing	Protective, clean, separated packaging
Scale-up	Prototype capability only	Repeatable process control for volume production
Communication	Sales-focused	Technical response with corrective-action support

The best supplier is not necessarily the most expensive. The best supplier is the one that can deliver the required performance consistently, communicate risks early, and support your program through each stage of development.

Review Technical Communication During the Quotation Stage

The quotation stage is an early test of a manufacturer’s engineering maturity.

A strong supplier will not simply reply with a price. It will review your drawing, identify unclear requirements, ask relevant questions, and recommend practical improvements where necessary.

Signs of a Capable Technical Team

Look for suppliers that ask about:

Operating wavelength
Incidence angle
Optical clear aperture
Coating requirements
Laser power density or pulse conditions
Surface quality expectations
Flatness and parallelism targets
Crystal orientation
Edge and chamfer details
Cleaning and packaging needs
Assembly method

These questions are not delays. They are evidence that the manufacturer is trying to prevent failure before it reaches production.

Warning Signs to Watch For

Be cautious if a supplier:

Promises every tolerance without reviewing the design
Cannot explain its inspection methods
Uses vague terms such as “high precision” without numbers
Does not ask about wavelength or coating for optical parts
Provides no material or process traceability
Cannot clarify how edge chips are controlled
Cannot distinguish prototype capability from production capability
Avoids discussing yield, handling, or packaging
Changes lead time or technical commitments frequently

A supplier that says “yes” to every request may not be the safest choice. A technically honest manufacturer may instead explain trade-offs, identify risks, and propose alternatives.

Check Optical Performance Requirements Carefully

For sapphire optical windows, lenses, and custom optical parts, “transparent” is not a complete requirement.

Sapphire offers broad transmission from ultraviolet through visible and into infrared wavelengths, but actual system performance depends on component thickness, surface finish, crystal orientation, reflection losses, coatings, and the specific wavelength of operation. Sapphire’s refractive index also creates surface reflection losses when components are uncoated.

Key Optical Questions to Ask

What wavelength range must the component transmit?
Is the light source ultraviolet, visible, near-infrared, or mid-infrared?
Is anti-reflection coating required?
Is the component used at normal incidence or an angle?
What is the clear aperture?
What wavefront tolerance is needed?
Is birefringence relevant to the optical system?
Will the part experience high laser power?
Is there a requirement for low scatter or low fluorescence?
Does the component need high transmission after environmental exposure?

For a visible-light camera cover, durability and appearance may be the main priorities. For a laser window, coating damage threshold, surface quality, and absorption control can be far more important. For an infrared sensor window, transmission at the exact operating wavelength must guide the material and coating choice.

Evaluate Coating Capability as Part of the System

Coating should not be treated as an afterthought. A sapphire substrate with an unsuitable coating can lose the performance benefits of the base material.

A capable sapphire manufacturer should understand the relationship between substrate preparation and coating performance. Polishing quality, cleaning process, coating adhesion, stress balance, and environmental durability all affect the final component.

Common Sapphire Coating Considerations

Depending on the application, sapphire components may require:

Anti-reflection coatings to improve transmission
Protective coatings for harsh environments

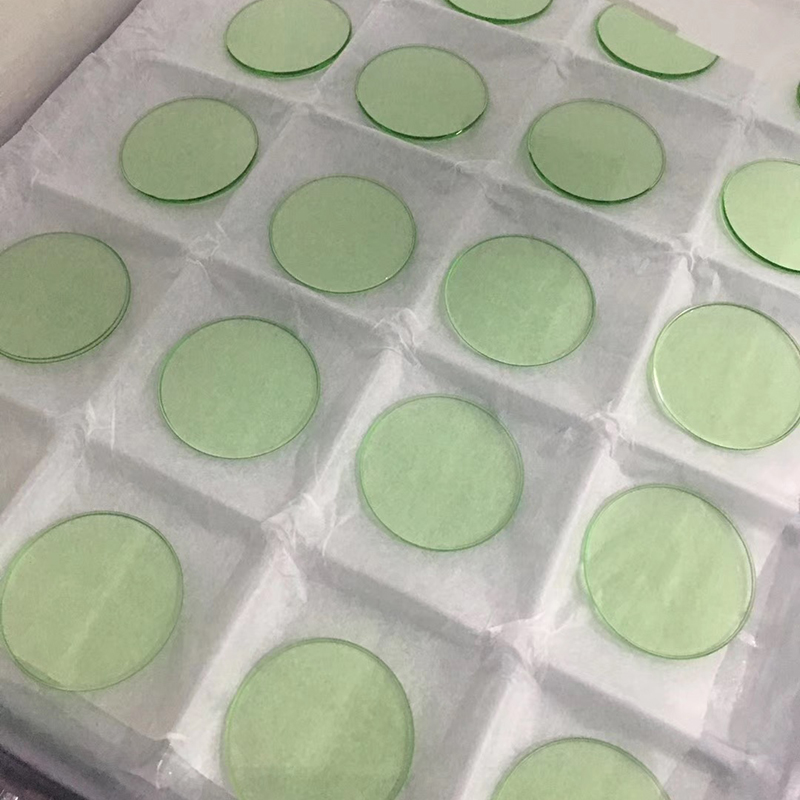

Hydrophobic or oleophobic coatings for touch surfaces
Decorative coatings for watch crystals and consumer products
Conductive coatings for specialized electronic or sensing applications
Laser-related coatings optimized for a specified wavelength

Before approving a coating, ask for the target wavelength range, transmission or reflectance target, coating durability expectations, adhesion criteria, environmental test conditions, and measurement method.

For example, an anti-reflection coating designed for 1064 nm may not provide the same benefit at 532 nm, 1550 nm, or across a broad visible range. The coating design must match the real optical requirement.

Use a Practical Supplier Qualification Process

A structured qualification process reduces sourcing risk. It also makes it easier to compare suppliers fairly.

Step 1: Prepare a Complete Technical Package

Provide:

2D drawing with tolerances
3D model for complex geometry
Material requirement
Crystal orientation requirement, if known
Optical and surface specifications
Coating requirement
Application description
Quantity for samples and production
Packaging requirement
Target delivery date
Quality documentation requirement

If some specifications are not finalized, state that clearly. An experienced manufacturer can help refine the requirement.

Step 2: Request Engineering Feedback

Ask each potential supplier to identify:

Manufacturing risks
Recommended material orientation
Achievable tolerances
Inspection methods
Lead time for samples
Expected yield concerns
Suggested design changes
Coating options
Packaging proposal

Do not judge suppliers only by response speed. Assess the relevance and technical depth of their response.

Step 3: Order Samples or First Articles

For critical components, test samples before approving volume production.

Evaluate:

Dimensions
Surface quality
Optical transmission
Coating performance
Edge condition
Appearance
Cleanliness
Assembly fit
Environmental performance
Documentation accuracy

When possible, test parts in the actual product rather than judging them only as individual components.

Step 4: Confirm Process Consistency

Before moving to larger volumes, verify whether the manufacturer can repeat the approved sample quality.

Important questions include:

Can the supplier maintain the same material source?
Is there a controlled process route?
Are inspection records maintained by lot?
How are nonconforming parts handled?
What happens if a coating lot does not meet the requirement?
Can the supplier support demand changes?
How are packing and shipping controlled?

Step 5: Establish Clear Acceptance Criteria

Quality disputes often result from unclear acceptance standards. Your purchase order and drawing should define measurable requirements rather than relying on general terms.

Instead of writing “no defects,” specify the acceptable scratch-dig level, chip size, inspection area, lighting condition, measurement tool, sampling plan, and acceptance limit.

How Different Industries Evaluate Sapphire Parts

The best sapphire manufacturer for one sector may not be the best fit for another. The manufacturing method, inspection focus, and documentation level should match the application.

Semiconductor and Electronic Components

Sapphire is used in semiconductor-related applications because it offers electrical insulation, thermal stability, chemical resistance, and compatibility with demanding process environments. It is widely associated with components such as LED-related substrates, electronic wafers, and process equipment windows.

Key priorities often include:

High purity
Controlled orientation
Flatness and parallelism
Thickness consistency
Low defect levels
Cleanliness
Traceability
Lot-to-lot repeatability

Laser and Optical Systems

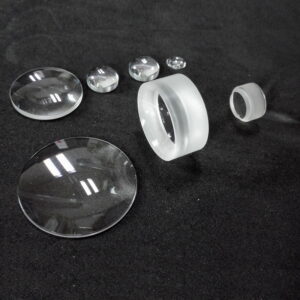

Laser and optical systems may use sapphire windows, lenses, rods, and custom-shaped components because sapphire combines hardness, thermal performance, and broad spectral transmission. Sapphire is used in applications involving ultraviolet, visible, and infrared light, as well as demanding high-temperature and high-abrasion environments.

Key priorities often include:

Surface quality
Low scatter
Wavefront quality
Coating design
Clear-aperture definition
Laser damage resistance
Edge protection
Accurate optical inspection

Medical Devices

Medical and analytical equipment may use sapphire for optical clarity, chemical resistance, hardness, and compatibility with demanding imaging or laser-related environments. Sapphire has applications in imaging systems, laser procedures, endoscopic equipment, and other medical technologies.

Key priorities often include:

Material cleanliness
Optical performance
Biocompatibility assessment where applicable
Chemical resistance
Sterilization compatibility
Documentation
Stable supply

Watches and Smart Devices

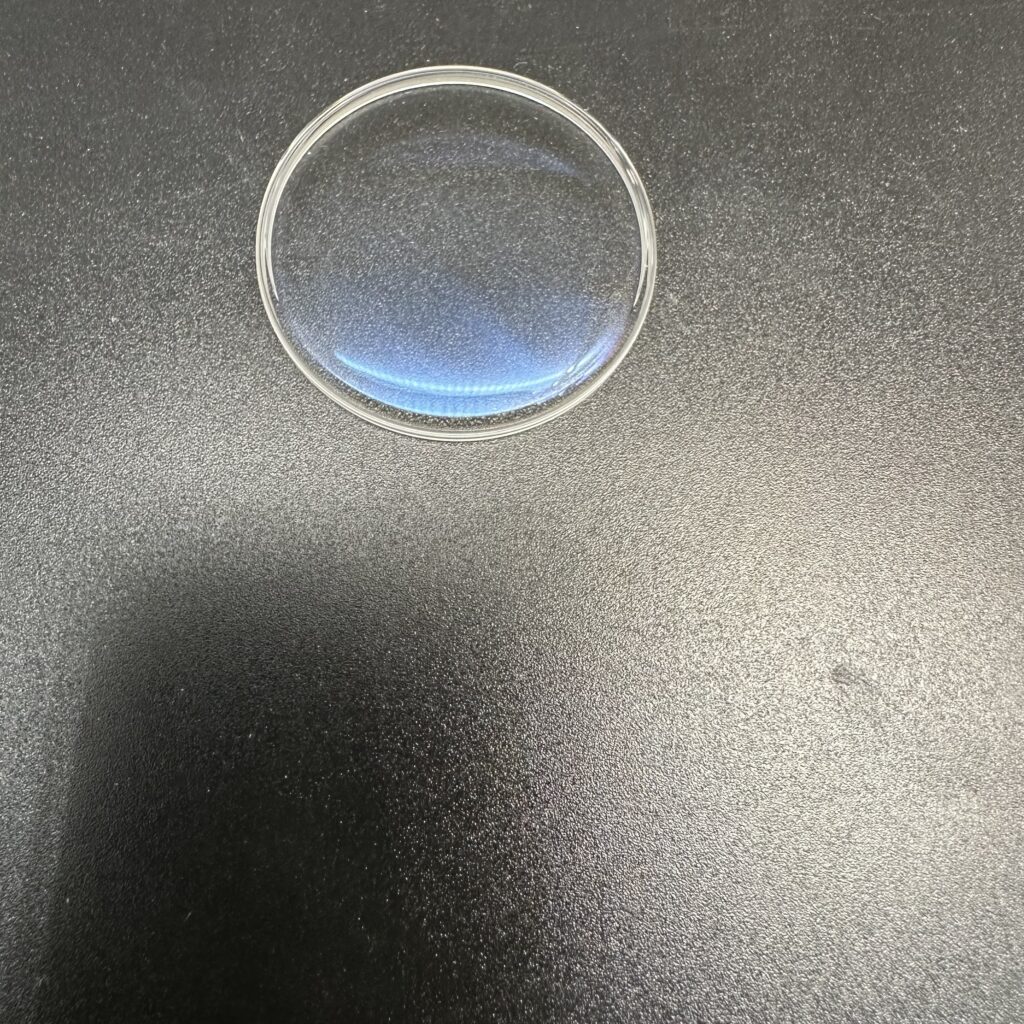

High-end watch crystals and smart-device covers often use sapphire because of its strong scratch resistance and premium appearance. However, the quality of polishing, edge finishing, coating, and cosmetic inspection determines whether the final component feels truly premium.

Key priorities often include:

Cosmetic surface quality
Consistent thickness
Complex curves or profiles
Polished edges and chamfers
Anti-reflective or decorative coatings
Impact resistance through proper edge design
High-volume consistency

Why Integrated Manufacturing Creates Better Outcomes

When cutting, grinding, polishing, shaping, inspection, and coating are coordinated within one controlled manufacturing system, the supplier can manage quality at each handoff.

This matters because sapphire component quality is cumulative. A small issue during cutting can create stress. A weak grinding process can leave damage. Inadequate polishing can preserve that damage. Poor cleaning can affect coating adhesion. Limited inspection can allow defects to reach the customer.

At CHENGDU COCREATION OPTICAL, our manufacturing approach is designed around this full-process perspective. We support sapphire rods, sapphire windows, semiconductor components, high-end watch crystals, ruby parts, and custom precision components through coordinated cutting, grinding, ultra-precision polishing, shaping, inspection, and coating capabilities.

Our goal is not only to produce a part that matches a drawing. It is to help customers receive a component that performs reliably in its real application.

A Final Checklist for Choosing a Sapphire Manufacturer

Before making a sourcing decision, confirm that the manufacturer can answer these questions clearly:

Can you recommend the right sapphire material and orientation?
Do you perform cutting, grinding, polishing, inspection, and coating in a controlled process?
What tolerances can you achieve repeatedly, not only on a sample?
How do you control chips, edge damage, and subsurface damage?
What optical inspection methods do you use?
Can you provide coating performance data for my wavelength range?
How do you ensure cleanliness and protective packaging?
Can you support prototypes, small batches, and volume production?
What documentation and traceability can you provide?
How do you handle nonconforming parts and corrective actions?
Can you provide engineering feedback before production?

The answers will reveal whether the supplier is simply a machining vendor or a long-term precision manufacturing partner.

Work With CHENGDU COCREATION OPTICAL

If you are developing a sapphire window, rod, semiconductor component, watch crystal, ruby part, or custom precision optical component, the best next step is to share your drawing, application conditions, material expectations, and target quantity.

CHENGDU COCREATION OPTICAL can support your project from early sample evaluation through stable production. Our integrated capabilities in cutting, grinding, ultra-precision polishing, shaping, inspection, and coating enable us to respond to both standard and custom sapphire requirements.

Contact our technical team with your drawing or performance requirements to discuss manufacturability, tolerances, surface quality, coating options, and production planning.

Frequently Asked Questions

What should I look for in a sapphire crystal manufacturer?

Look for proven material knowledge, in-house machining and polishing capability, measurable inspection methods, coating support, clear communication, and experience with your application. The supplier should be able to explain how it will control dimensions, surface quality, edges, optical performance, and production consistency.

Is synthetic sapphire suitable for optical windows?

Yes. Synthetic sapphire is widely used for optical windows because it combines high hardness, chemical resistance, thermal stability, and broad transmission from ultraviolet through infrared wavelengths. The final suitability depends on the required wavelength, thickness, surface finish, orientation, and coating design.

Why is crystal orientation important for sapphire parts?

Sapphire is anisotropic, meaning some optical, thermal, and mechanical characteristics vary with crystal direction. Crystal orientation can affect birefringence, machining behavior, thermal expansion, and optical performance. The correct orientation should be selected based on the component’s final function.

What is the difference between a sapphire window and ordinary glass?

Sapphire is much harder and more scratch resistant than ordinary glass. It also offers strong chemical resistance, high thermal performance, and broad optical transmission. However, sapphire is more difficult and expensive to process, so component design and supplier capability have a significant effect on final cost and quality.

Do sapphire optical windows need anti-reflection coating?

Not always, but anti-reflection coating is often beneficial because sapphire surfaces reflect part of the incoming light. A properly designed coating can improve transmission at the target wavelength or wavelength range. The coating should be selected based on the actual optical system, angle of incidence, environment, and durability requirement.

Can a manufacturer support both prototype and mass production?

A capable precision sapphire manufacturer should support sample development, low-volume validation, and larger-scale production. Before selecting a supplier, confirm whether the process, inspection plan, material sourcing, and packaging method can be maintained consistently as production volume increases.

How can I reduce the cost of custom sapphire components?

You can reduce cost by avoiding unnecessary tight tolerances, simplifying geometry, using practical edge specifications, clearly defining the optical clear aperture, selecting appropriate coating requirements, and discussing manufacturability before finalizing the drawing. A qualified manufacturer can recommend cost-effective changes without compromising functional performance.

What quality documents should I request for sapphire parts?

Depending on your application, request dimensional inspection reports, material certification, coating data, surface-quality records, optical transmission data, first-article inspection reports, lot traceability, and packaging or cleanliness documentation. The exact document package should match the risk level of the final application.

References

1. SCHOTT – “Sapphire for Advanced Imaging, Sensing & Security” – Overview of sapphire applications in advanced imaging, sensing, and security. https://media.schott.com/api/public/content/2c2ecfc25979458f8526491917961fc8?v=27eb4791&download=true

2. SEMI – “Automated Defect Detection Improves Sapphire Yields” – Article on how automated defect detection improves sapphire manufacturing yields. https://www.semi.org/en/blogs/technology-trends/making-the-invisible-visible-automated-defect-detection-improves-sapphire-yields

3. Crystran – “Sapphire Al₂O₃ Optical Material Properties” – Optical material properties and specifications for sapphire (Al₂O₃). https://www.crystran.com/optical-materials/sapphire-al2o3/

4. Luxium Solutions – “Sapphire Applications” – Overview of sapphire applications across industries. https://luxiumsolutions.com/applications/sapphire-applications

5. UQG Optics – “Sapphire Material Focus” – Technical focus on sapphire as an optical material. https://www.uqgoptics.com/material-focus-sapphire/

6. IP2I – “Demonstration of the Polishing Process for Large Sapphire Crystals” – Research on the polishing process for large sapphire crystals. https://www.ip2i.in2p3.fr/demonstration-of-the-polishing-process-for-large-sapphire-crystals/?lang=en

7. Chicago Mechanical Polishing – “Precision Sapphire Glass Polishing and Surface Standards” – Services and standards for precision sapphire glass polishing. https://chicagomechanicalpolishing.com/chicago/precision-sapphire-glass-polishing-services/

8. Fact.MR – “Synthetic Sapphire Market and Application Overview” – Market research report on the synthetic sapphire market and its applications. https://www.factmr.com/report/synthetic-sapphire-market

Hot Tags: Sapphire Crystal Manufacturer, Sapphire Window Manufacturer, Custom Sapphire Components, Sapphire Optical Components, Synthetic Sapphire Manufacturer, Sapphire Rod Supplier, Sapphire Optical Windows, Precision Sapphire Machining, Sapphire Semiconductor Components, Custom Sapphire Optics

Leave a ReplyCancel Reply

Related Posts

For Immediate Assistance, Please Contact us Now!
