Why Is Sapphire Used in Semiconductor Equipment?

Semiconductor equipment operates in environments where heat, plasma, corrosive chemicals, vacuum, mechanical wear, and contamination risks occur at the same time. This is why high-purity synthetic sapphire has become an important material for semiconductor equipment components such as process chamber windows, plasma tubes, wafer carriers, lift pins, end effectors, insulating parts, precision bearings, and custom optical assemblies.

At CHENGDU COCREATION OPTICAL, we manufacture high-purity synthetic sapphire and precision optical components through in-house cutting, grinding, ultra-precision polishing, shaping, inspection, and coating processes. From prototype samples to low-volume trials and scalable production, we help equipment manufacturers develop sapphire components that remain stable in demanding semiconductor processing conditions.

Why Material Selection Matters in Semiconductor Equipment

In semiconductor fabrication, material selection is not simply a mechanical design decision. A chamber component can affect particle levels, tool uptime, process repeatability, optical monitoring accuracy, wafer safety, and maintenance frequency.

Semiconductor manufacturing depends on extremely clean and repeatable conditions. Even small amounts of particles, metallic impurities, chemical residue, or worn material can create defects on a wafer. Industry research shows that contamination control becomes more critical as device features shrink and process structures become more complex. Process equipment itself can become a contamination source when internal components wear, corrode, crack, or generate particles during repeated processing cycles.

For this reason, semiconductor equipment manufacturers need materials that can withstand aggressive conditions without becoming a new source of risk.

Sapphire is often selected because it combines several valuable characteristics in one single-crystal material:

High hardness and wear resistance
Excellent resistance to many chemicals and plasma environments
High-temperature stability
Electrical insulation
Optical transparency from ultraviolet to infrared wavelengths
Low particle-generation potential when properly designed and finished
High dimensional stability for precision components

Unlike ordinary glass, many metals, polymers, or polycrystalline ceramics, high-purity single-crystal sapphire can provide a balanced combination of optical, thermal, chemical, and mechanical performance.

What Is Synthetic Sapphire?

Synthetic sapphire is a high-purity, single-crystal form of aluminum oxide, chemically represented as Al₂O₃. It has the same fundamental crystal structure and physical characteristics as natural sapphire, but it is grown under controlled industrial conditions to meet engineering requirements.

In semiconductor equipment, synthetic sapphire is valued not for its gemstone appearance, but for its material stability and precision-manufacturing potential.

High-quality sapphire begins with crystal growth and continues through several controlled manufacturing stages:

Crystal selection and orientation control
Precision slicing or coring
Grinding and shaping
Lapping and ultra-precision polishing
Dimensional and surface inspection
Cleaning, coating, and final packaging when required

Each stage matters. A sapphire component may have excellent bulk material properties, but poor machining quality, unsuitable crystal orientation, insufficient edge finishing, surface damage, or inadequate cleaning can reduce its actual performance in an equipment application.

This is why semiconductor equipment designers should evaluate both the sapphire material and the manufacturing capability behind the finished part.

Sapphire Properties That Benefit Semiconductor Tools

Sapphire is used in semiconductor equipment because it performs well where conventional materials may degrade, wear, or introduce contamination.

Property	Typical Sapphire Characteristic	Why It Matters in Semiconductor Equipment
Material composition	Single-crystal `Al₂O₃`	Supports high-purity component design
Hardness	Mohs 9	Resists scratches, abrasion, and mechanical wear
Melting point	Approximately 2,040°C	Supports high-temperature process environments
Optical transmission	Roughly UV through mid-wave infrared, depending on wavelength and quality	Enables optical observation, sensing, and laser-related functions
Electrical behavior	Electrical insulator	Useful for isolating structures and electrically sensitive assemblies
Chemical stability	Strong resistance to many aggressive environments	Helps components withstand process gases and chemicals
Plasma resistance	Particularly valuable in fluorine-containing plasma processes	Supports longer-life chamber components
Crystal structure	Single crystal with no grain boundaries	Can reduce pathways for corrosion and particle release compared with some polycrystalline materials

Published material data commonly reports sapphire hardness near Mohs 9, a melting point around 2,040°C, and broad transmission extending from ultraviolet wavelengths into the infrared region. Its thermal conductivity varies with crystal orientation and temperature, so engineers should use application-specific data rather than relying on a single generic value.

1. High Hardness Reduces Wear and Surface Damage

Sapphire is one of the hardest engineering materials commonly used in precision optics and semiconductor equipment. Its Mohs hardness of 9 places it below diamond but above many metals, glasses, and conventional ceramic materials.

This matters in applications involving contact, movement, alignment, loading, or repeated cleaning. A sapphire component can resist scratching and wear better than softer alternatives, helping preserve its surface condition over a longer operating period.

Typical wear-sensitive applications include:

Wafer handling contact parts
Lift pins
Precision guides
Sapphire bearings and jewel components
Optical windows exposed to cleaning or maintenance procedures
Mechanical supports in high-purity systems

However, hardness alone does not guarantee a suitable solution. Sapphire is also a brittle crystal material, so component geometry, mounting method, edge design, loading direction, and handling procedures must be engineered carefully.

2. Chemical and Plasma Resistance Supports Harsh Processes

Etching, deposition, cleaning, and plasma-based semiconductor processes expose components to reactive gases, high-energy ions, elevated temperatures, and chemical by-products.

Sapphire is frequently used for components operating in these harsh environments because high-purity single-crystal sapphire has strong chemical stability and very good resistance to fluorine-based plasma exposure. This is especially useful in equipment for dry etching, plasma-enhanced chemical vapor deposition, high-density plasma chemical vapor deposition, wet processing, and related applications.

Sapphire can be applied in:

Process chamber viewports
Plasma containment tubes
Gas-distribution and insulating components
Edge rings and support parts
Wafer carriers
End effectors
Lift pins
Protective optical windows
Custom structures for plasma and vacuum equipment

In practical terms, better material resistance can help reduce the frequency of component replacement. Fewer replacements may mean less maintenance intervention, reduced downtime risk, and more consistent equipment operation.

3. Optical Transparency Enables Monitoring and Sensing

Many semiconductor processes require operators or automated systems to observe conditions inside a chamber without exposing the process environment to external contamination.

Sapphire windows can support this requirement because sapphire transmits across a broad spectral range, including ultraviolet, visible, and portions of the infrared spectrum. Depending on the wavelength, thickness, crystal orientation, surface finish, and coating, sapphire can be used in optical monitoring systems, laser processing systems, imaging assemblies, and sensor-protection applications.

Common sapphire optical components include:

Chamber observation windows
Laser protection windows
Sensor windows
Infrared-compatible protective windows
Optical lenses
Vacuum-compatible viewports
Inspection-system components

For optical applications, transmission alone is not enough. Engineers must also consider:

Surface roughness
Parallelism
Flatness
Wedge
Clear aperture
Edge quality
Coating requirements
Operating wavelength
Thermal load
Pressure differential

A well-polished sapphire window with the correct coating can improve optical throughput and reduce unwanted reflection. Conversely, an improperly specified window may create transmission loss, optical distortion, stress concentration, or premature failure.

4. Electrical Insulation Expands Design Options

Sapphire is an electrical insulator, making it useful in semiconductor equipment where electrical separation is required alongside thermal stability and mechanical strength.

This property supports its use in insulating structures, high-voltage-related assemblies, plasma equipment, radio-frequency environments, and components that must avoid unintended electrical conduction.

In a process tool, an insulating component may need to perform multiple functions at once:

Maintain mechanical alignment
Resist heat
Resist chemical exposure
Minimize particle generation
Separate electrically active areas
Maintain precision dimensions over repeated cycles

Sapphire can be a strong candidate when a component must meet several of these requirements simultaneously.

Common Sapphire Components in Semiconductor Equipment

Sapphire is not limited to wafers or optical windows. Its use across semiconductor equipment is broader because its performance can be adapted through precision machining.

Sapphire Component	Typical Function	Key Material Advantage
Sapphire chamber window	Enables visual, optical, or laser access	Transparency, hardness, plasma resistance
Sapphire tube	Supports plasma generation or containment	Heat resistance, electrical insulation
Sapphire wafer carrier	Supports thin or delicate wafers	Thermal stability, chemical resistance, rigidity
Sapphire lift pin	Raises or positions wafers	Wear resistance, dimensional stability
Sapphire end effector	Supports wafer handling	Low wear, chemical stability
Sapphire edge ring	Supports process-zone control	Plasma and chemical resistance
Sapphire insulator	Separates electrical elements	Electrical insulation and high-temperature stability
Sapphire bearing or jewel	Enables accurate low-wear movement	Hardness, low wear, precision capability
Custom sapphire fixture	Holds or aligns critical components	Tailored geometry and stability
Sapphire optical lens	Supports imaging, sensing, or laser systems	Broad spectral transmission and scratch resistance

Sapphire Windows for Process Chambers

A sapphire process window allows light, imaging signals, or laser energy to pass through while helping isolate the internal chamber environment. Compared with ordinary glass, sapphire generally provides much higher scratch resistance and stronger performance under demanding mechanical and thermal conditions.

These windows can be used in etching systems, deposition chambers, plasma systems, laser-processing equipment, inspection tools, and vacuum assemblies.

For an effective sapphire window design, engineers should specify:

Diameter, length, width, and thickness
Optical clear aperture
Required wavelength range
Surface flatness and parallelism
Surface quality requirement
Mounting method
Vacuum or pressure requirement
Anti-reflective or other functional coating
Maximum operating temperature
Exposure to plasma, chemicals, or particle bombardment

Sapphire Tubes for Plasma and High-Temperature Systems

Sapphire tubes can be used in plasma-related systems because they combine electrical insulation, high-temperature capability, and chemical stability. They may be selected for plasma containment, corona discharge, optical protection, high-purity gas-related systems, and other specialized equipment designs.

Tube quality depends on more than outside diameter and wall thickness. Critical specifications can include concentricity, straightness, inner-surface quality, wall uniformity, end-face flatness, and crack-free machining.

For custom sapphire tubes, CHENGDU COCREATION OPTICAL can support project discussions around size, tolerance, surface finish, optical requirements, and production quantity.

Sapphire Wafer Carriers and Handling Parts

Ultra-thin wafers, compound-semiconductor wafers, and delicate substrates may require stable support during processing and handling. Sapphire wafer carriers can provide a rigid, chemically stable, and heat-resistant platform in suitable applications.

Sapphire is commonly considered for handling parts when the equipment must reduce risks from wear, deformation, and contamination. A properly designed carrier may support repeatable positioning while limiting damage to the wafer or substrate.

Still, material selection should be based on actual process conditions. The best carrier material depends on wafer size, process temperature, chemical exposure, handling load, thermal cycling, vacuum conditions, and acceptable cost of ownership.

How Sapphire Helps Control Contamination Risk

Particle contamination can reduce yield, affect reliability, and create difficult-to-trace process variation. Equipment components are one potential source of particles, particularly when friction, corrosion, coating failure, abrasion, thermal cycling, or chemical attack degrades the component surface.

Sapphire can help address this risk because it is a dense, hard, single-crystal material with no grain boundaries. Compared with some polycrystalline ceramics, a single-crystal sapphire component may have fewer structural pathways for corrosion or grain-related particle release.

However, sapphire should not be described as automatically particle-free. Real-world contamination performance depends on the full component system.

Important factors include:

Crystal purity: Impurity control is essential for high-purity applications
Surface finish: Rough surfaces can trap contamination or create particle risks
Edge preparation: Sharp or damaged edges can chip during assembly or cleaning
Machining quality: Subsurface damage can weaken a component or affect reliability
Cleaning process: Post-processing cleaning must match the end-use environment
Packaging: Improper packaging can introduce particles after final inspection
Mounting design: Excessive stress can crack or chip even a high-quality sapphire part
Process compatibility: Chemical, thermal, and plasma exposure must be assessed together

The most effective approach is not to choose sapphire based only on a data sheet. It is to match the material grade, geometry, finish, cleaning method, and mounting design to the actual equipment environment.

Practical Design Guide for Custom Sapphire Parts

A successful custom sapphire component begins with a clear application definition. The more precisely a manufacturer understands the operating environment, the more effectively it can recommend material orientation, geometry, processing route, and inspection criteria.

Step 1: Define the Operating Environment

Start with the conditions the part will experience:

Maximum and minimum temperature
Thermal cycling frequency
Vacuum level or pressure differential
Plasma chemistry
Chemical exposure
Mechanical load
Contact frequency
Required electrical behavior
Optical wavelength range
Cleanliness and particle-control requirements

For example, a sapphire window for visible observation in a deposition chamber may require different flatness, coating, and thickness than a sapphire window used for ultraviolet laser transmission.

Step 2: Select the Right Component Geometry

Sapphire can be fabricated into rods, tubes, discs, windows, rings, wafers, lenses, blocks, bearings, and complex custom shapes. But the geometry must account for sapphire’s high hardness and brittle nature.

Design improvements may include:

Adding appropriate edge chamfers
Avoiding sharp internal corners
Specifying practical tolerances
Balancing thickness against pressure and optical requirements
Reducing unnecessary stress points
Using mounting features that accommodate thermal expansion
Designing for safe handling and assembly

Step 3: Specify Critical Tolerances Clearly

Not every dimension requires the same tolerance. Over-specification can raise manufacturing cost without improving performance, while under-specification can create assembly problems.

Critical requirements may include:

Outer diameter and inner diameter
Thickness
Flatness
Parallelism
Concentricity
Surface roughness
Surface quality
Edge condition
Optical clear aperture
Coating performance
Crystal orientation

A clear engineering drawing should identify which features are functional and which are non-critical.

Step 4: Validate With Samples Before Scale-Up

For new semiconductor equipment designs, prototype samples are often the most efficient way to confirm fit, optical performance, handling behavior, chemical compatibility, and process durability.

A practical validation process may include:

Confirm the final drawing and technical requirements
Produce prototype sapphire samples
Perform dimensional and surface inspection
Evaluate the part in the intended equipment environment
Review particle, wear, transmission, or process data
Refine the design if needed
Move to low-volume and then scalable production

This reduces the risk of discovering avoidable issues after a large production order has already begun.

Why Precision Manufacturing Is as Important as Material Quality

A sapphire part is only as reliable as the manufacturing process used to make it.

Sapphire is difficult to process because of its extreme hardness. Producing a high-precision sapphire component requires controlled cutting, grinding, lapping, polishing, shaping, cleaning, inspection, and, where needed, optical coating. Small errors can affect the final component’s fit, strength, optical performance, and contamination behavior.

At CHENGDU COCREATION OPTICAL, our integrated capabilities are designed to support precision sapphire projects from early samples through repeatable production.

Our manufacturing scope includes:

High-purity synthetic sapphire components
Sapphire rods and tubes
Sapphire windows and optical plates
Semiconductor equipment components

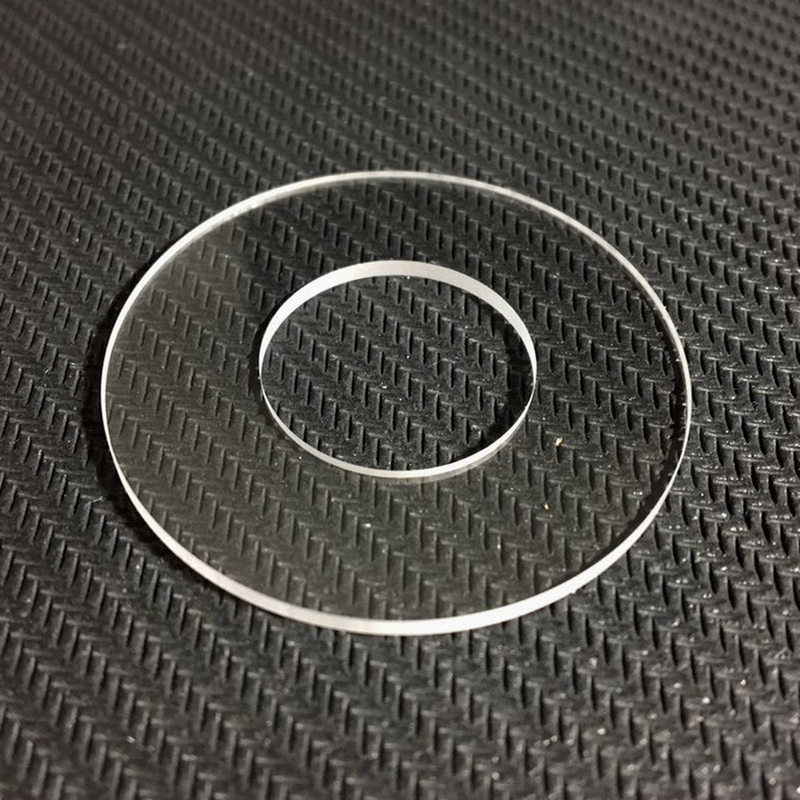

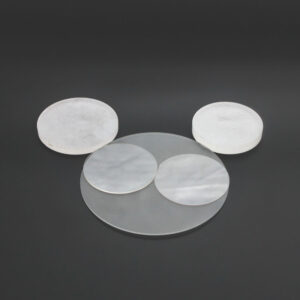

Precision sapphire rings and discs
Custom sapphire parts

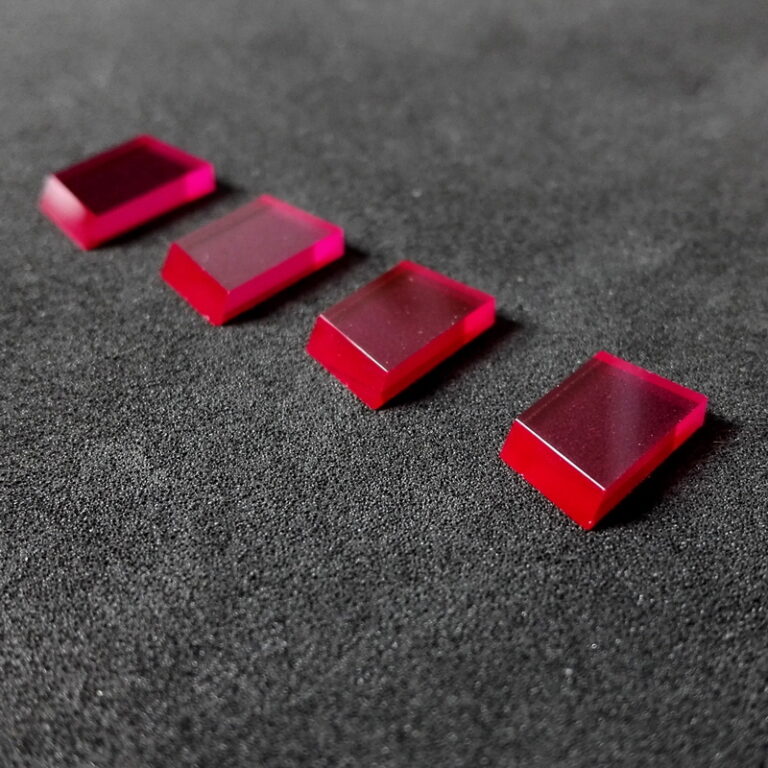

Ruby components

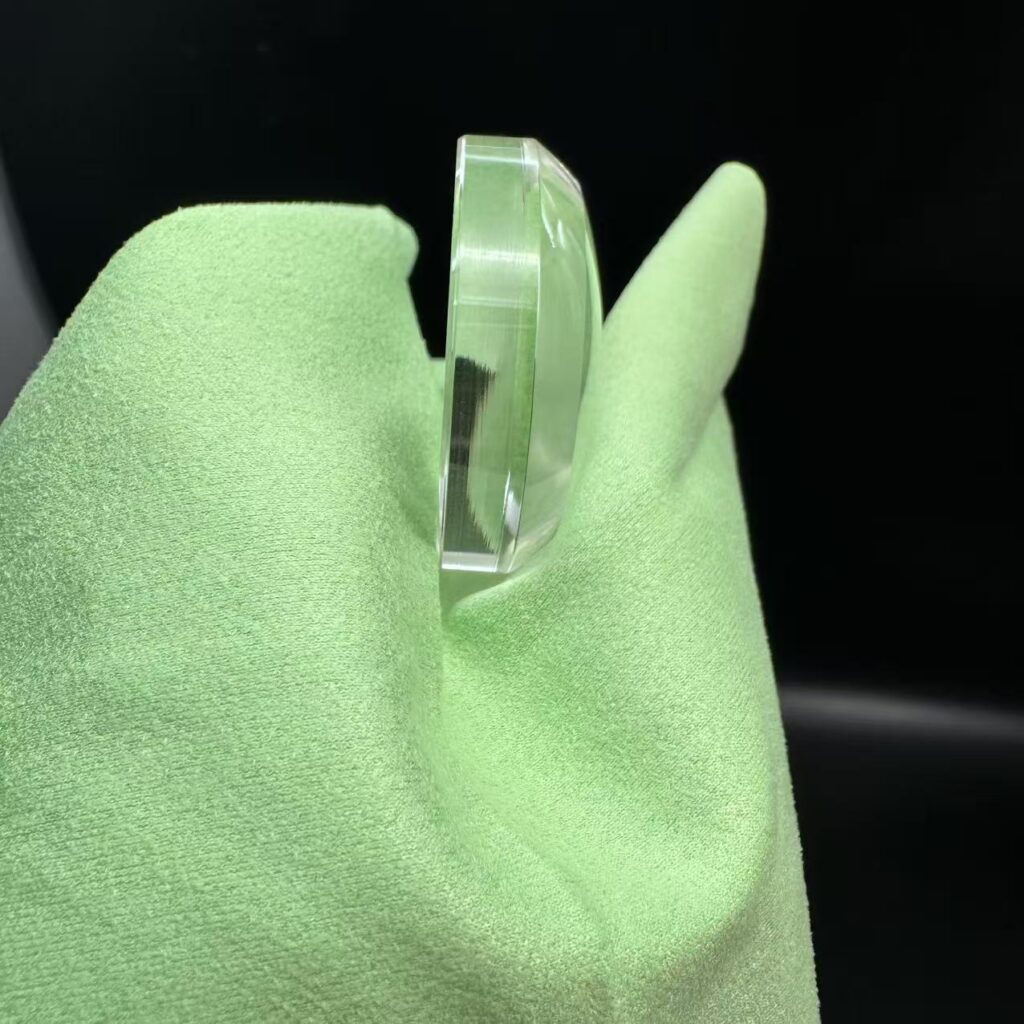

High-end watch crystals
Precision grinding and polishing
Ultra-precision optical finishing
Dimensional inspection

By controlling multiple production stages in-house, we can better coordinate specifications across machining, polishing, inspection, and final delivery.

Choosing Sapphire vs. Other Materials

Sapphire is not the correct material for every semiconductor component. The best choice depends on the specific process, performance target, geometry, budget, and failure mode.

Material	Strengths	Possible Limitations	Suitable Use Cases
Sapphire	Hard, transparent, chemically stable, electrically insulating, high-temperature capable	Brittle, difficult to machine, higher component cost	Windows, tubes, carriers, insulators, precision handling parts
Quartz	Good optical transmission and thermal behavior	Lower hardness and lower resistance to some harsh conditions	Optical windows and lower-stress process applications
Alumina ceramic	Cost-effective, electrically insulating, mechanically useful	Grain boundaries may affect surface behavior and precision optical use	Structural and insulating ceramic components
Silicon carbide	Strong, thermally conductive, wear resistant	Often opaque and electrically conductive depending on grade	High-temperature structural or heating-related applications
Metals	Strong and easy to machine	Can corrode, shed particles, or conduct electricity	Frames, supports, non-process-contact structures
Engineering polymers	Lightweight and inexpensive	Lower heat and chemical resistance	Low-temperature, non-critical handling components

The right decision is rarely “sapphire versus everything else.” A more useful question is: Which material best addresses the dominant failure risk in this component?

If the main risk is optical damage, plasma erosion, high-temperature deformation, chemical attack, or surface wear, sapphire may offer a strong long-term solution.

Request a Custom Sapphire Component Evaluation

Sapphire is used in semiconductor equipment because it can solve multiple performance challenges at once: it resists wear, tolerates harsh processing environments, supports optical access, provides electrical insulation, and can be machined into highly precise custom parts.

For equipment manufacturers, the value of sapphire is not just its impressive material data. The real value comes from integrating the right sapphire grade, geometry, surface finish, tolerance, cleaning standard, and coating into a part that performs reliably in the intended process.

CHENGDU COCREATION OPTICAL supports custom sapphire components from samples and small batches to scalable production. If you are developing a sapphire window, rod, tube, wafer carrier, semiconductor fixture, optical component, ruby part, or another precision part, send us your drawing, material requirements, target application, and expected quantity for a technical evaluation.

FAQ

1. Why is sapphire used for semiconductor chamber windows?

Sapphire chamber windows combine high hardness, chemical stability, plasma resistance, and broad optical transmission. They can protect process environments while allowing visual observation, imaging, sensing, or laser transmission.

2. Is sapphire suitable for fluorine plasma environments?

High-purity sapphire is widely used in demanding plasma-related semiconductor applications because of its strong resistance to fluorine-containing plasma environments. Actual suitability should still be verified according to process chemistry, temperature, exposure duration, component geometry, and maintenance conditions.

3. Can sapphire components be used in vacuum equipment?

Yes. Sapphire is commonly used in vacuum-compatible semiconductor equipment components, including viewports, windows, insulators, tubes, and handling parts. The final design should account for mounting stress, pressure differential, cleanliness, outgassing requirements, and thermal cycling.

4. What is the difference between sapphire and alumina ceramic?

Sapphire is single-crystal aluminum oxide, while conventional alumina ceramic is generally polycrystalline. Sapphire has no grain boundaries, which can provide advantages in optical transparency, surface integrity, chemical resistance, and certain high-purity applications.

5. Can sapphire be made into custom shapes?

Yes. Sapphire can be precision-machined into rods, windows, discs, rings, tubes, wafers, lenses, bearings, plates, and custom geometries. Feasible shapes and tolerances depend on size, thickness, crystal orientation, surface requirements, and production volume.

6. Does sapphire generate no particles in semiconductor equipment?

No material should be assumed to create zero particles in every application. Sapphire can help reduce particle risk because of its hardness, chemical stability, and single-crystal structure, but final performance also depends on surface finish, edge quality, mounting method, cleaning, handling, and process conditions.

7. What information is needed for a sapphire quotation?

A useful quotation request should include a drawing or dimensions, material grade, quantity, tolerance, surface finish, optical requirements, crystal orientation if required, operating environment, coating requirement, and delivery expectations.

References

1. Luxium Solutions – “Sapphire Applications” – Overview of sapphire applications across industries. https://luxiumsolutions.com/applications/sapphire-applications

2. Luxium Solutions – “Sapphire for Semiconductor Manufacturing Equipment” – PDF on sapphire used in semiconductor manufacturing equipment. https://luxiumsolutions.com/sites/default/files/2021-09/Sapphire-for-Semiconductor-Manufacturing.pdf

3. Orbray – “Sapphire Carrier Wafers” – Product information on sapphire carrier wafers. https://orbray.com/en/product/jewel/product/sapphire-template.html

4. Crystran – “Sapphire Al₂O₃ Material Data” – Material data and specifications for sapphire (Al₂O₃). https://www.crystran.com/optical-materials/sapphire-al2o3/

5. Shinkosha – “Properties of Sapphire” – Technical information on the properties of sapphire. https://www.shinkosha.com/english/techinfo/feature/

6. Semiconductor Industry Association – “Background on Semiconductor Manufacturing” – Background paper on semiconductor manufacturing and related industry issues. https://www.semiconductors.org/wp-content/uploads/2023/05/FINAL-PFAS-Consortium-Background-Paper.pdf

7. OSTI – “Effects of Contamination on Semiconductor Manufacturing Yield” – Research on how contamination affects semiconductor manufacturing yield. https://www.osti.gov/biblio/6867842

8. TSI – “Main Sources of Particle Shedding and Possible Impacts on Yield” – Analysis of particle shedding sources and their impact on manufacturing yield. https://tsi.com/electronics-manufacturing/learn/main-sources-of-particle-shedding-and-possible-impacts-on-yield

9. AZoM – “Sapphire Wafer Carriers” – Video and information on sapphire wafer carriers. https://www.azom.com/materials-video-details.aspx?VidID=3376

10. Guild Optical Associates – “Sapphire Properties” – Reference on the optical and physical properties of sapphire. https://www.guildoptics.com/sapphire-properties/sapphire-properties/

Hot Tags: Sapphire Semiconductor Equipment, Synthetic Sapphire Components, Sapphire Chamber Windows, Sapphire Wafer Carriers, Custom Sapphire Parts, Semiconductor Sapphire Windows, Sapphire Tubes For Plasma, High Purity Sapphire, Sapphire Optical Components, Semiconductor Equipment Components
